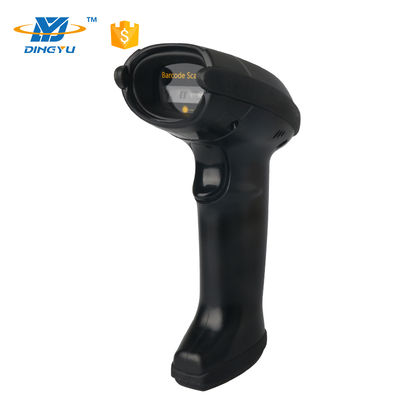

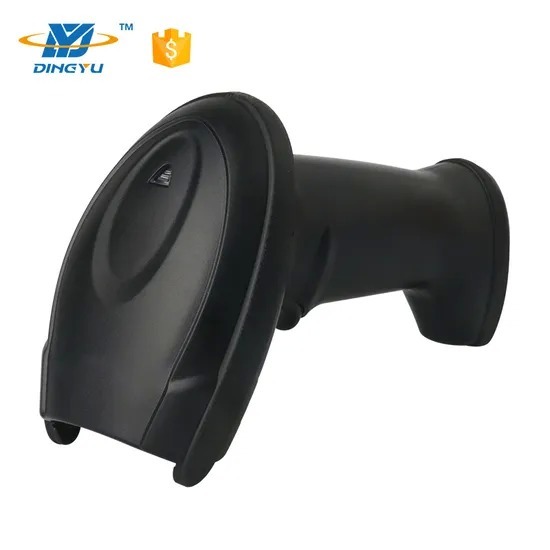

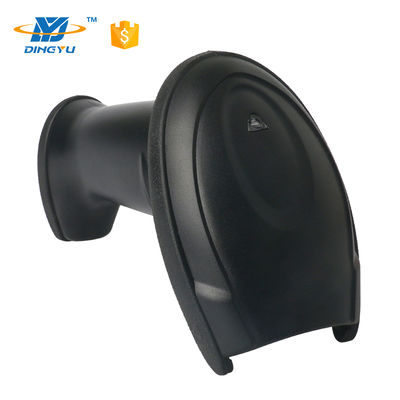

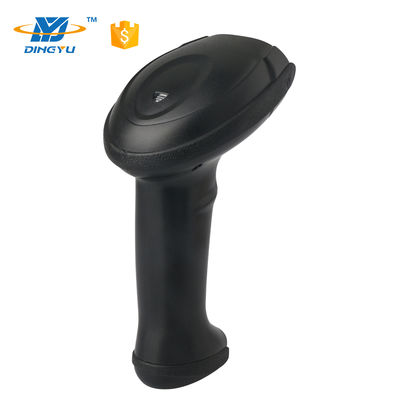

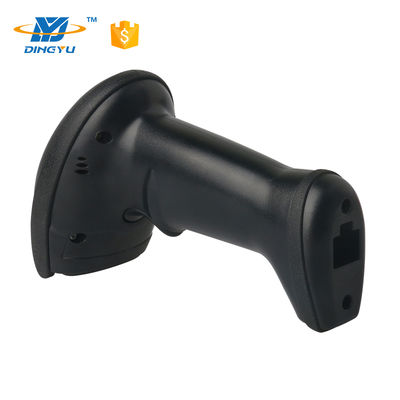

Name: DS5900-1D CCD Barcode Scanner 300 Scans/sec USB Handheld
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

Startseite Produkte Scanner des Barcodes 1D

DS5900-1D CCD Barcode Scanner 300 Scans/sec USB Handheld

Produktdetails:

Zahlung und Versand AGB:

Min Bestellmenge:	1
Preis:	10

Kontakt

Ausführliche Produkt-Beschreibung

Modell Nr.:	DS5900-1D	Schnittstellentyp:	USB
Scangeschwindigkeit:	300 Scans/sek	Scanelement:	CCD
Kameraauflösung:	640*480	Lesepräzision:	3mil Code39
Feldtiefe:	10-600mm	Scanmodus:	Handbuch, kontinuierlich, Auto -Scan, Blinken
Druckkontrast:	20%	CPU:	32 Bit
Kabellänge:	1,5 m	Gewicht:	160g
Auflösung:	2500	Dimension:	L165,5 mm * W63.5mm * H92.3mm
Tropfenhöhe:	1,5 m
Hervorheben:	DS5900-1D USB barcode scanner , handheld 1D barcode scanner , 300 scans/sec CCD scanner

1D Wired CCD Barcode Scanner - The Most Affordable Handheld Scanner for Supermarkets

Quick scanning Code39 Reader CCD 1D Wired USB BT Handheld Barcode Scanner

Product Specifications

Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading precision	≥3mil/0.076mm (PCS90%, Code 39)
Decoding speed	300 times/s
Depth of field	10mm-600mm
Scan Mode	Manual, Continuous, Auto Sense, Flashing
Scan angle	Test Conditions: CODE39, 10mil/0.25mm, PCS90% Pitch: ±60° Roll: ±30° Skew: ±60°
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light
Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc.
Weight	≈160g (without cable)
Dimension	L165.5mm × W63.5mm × H92.3mm
Communication Mode	USB (USB-KBW, USB-COM), RS232
Interface Type	USB, RS232
Power Supply	DC 5V@80mA (work)
Operating temperature	-20ºC to 55ºC
Storage temperature	-40ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.5m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp. High Temp.: 60ºC Low Temp.: -20ºC
Transport vibration Test	10H@125RPM
