Name: DS2806-1D 1D Barcode Scanner 300 Scans/Sec USB RS232
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

Startseite Produkte Scanner des Barcodes 1D

DS2806-1D 1D Barcode Scanner 300 Scans/Sec USB RS232

Produktdetails:

Zahlung und Versand AGB:

Min Bestellmenge:	1

Kontakt

Ausführliche Produkt-Beschreibung

Modell Nr.:	DS2806-1D	Schnittstellentyp:	USB
Scangeschwindigkeit:	300 Scans/sek	Scanelement:	CCD
CPU:	32-Bit	Auflösung:	1500
Lesepräzision:	4 Millimeter/0,1 mm	Decodierungsgeschwindigkeit:	300times/s
Feldtiefe:	40mm-500mm	Scanmodus:	Handbuch, kontinuierlich
Druckkontrast:	25%	Gewicht:	170g
Abmessungen:	L163,5 mm * W65,0 mm * H89,5 mm	Stromversorgung:	DC 5V@80 mA (Arbeit)
Betriebstemperatur:	-20ºC bis 50ºC
Hervorheben:	1D barcode scanner USB RS232 , DS2806-1D barcode scanner 300 scans/sec , 1D barcode scanner with warranty

1D CCD Handheld Wired Barcode Scanner with USB/RS232 Interface

The DS2806-1D is a high-performance 1D barcode scanner featuring advanced CCD image recognition technology. It efficiently reads barcodes from various surfaces including paper, products, and digital screens. Ideal for manufacturing, warehousing, logistics, healthcare, retail, mobile payments, and inventory management applications.

Key Features

Ergonomic design for comfortable extended use
Reads all standard 1D barcode formats
High-speed 32-bit processor with rapid decoding (300 scans/sec)
Supports multiple languages and operating systems
Dual interface options: USB and RS232
Wide application in supermarkets, warehouses, and retail environments

Technical Specifications

Performance Parameters
Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	1500
Reading Precision	≥4mil/0.1mm (PCS90%, Code 39)
Decoding Speed	300 times/second
Depth of Field	40mm-500mm
Scan Modes	Manual, Continuous
Supported Barcode Types	UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5, and more

Physical Parameters
Weight	≈170g
Dimensions	163.5mm × 65.0mm × 89.5mm
Interfaces	USB, RS232 (DB9)
Power Supply	DC 5V@80mA (operating)

Environmental Specifications
Operating Temperature	-20°C to 50°C
Storage Temperature	-40°C to 60°C
Humidity	5% to 95% (non-condensing)

Included Accessories

USB Cable for host device connection
RS232 Cable with USB power supply

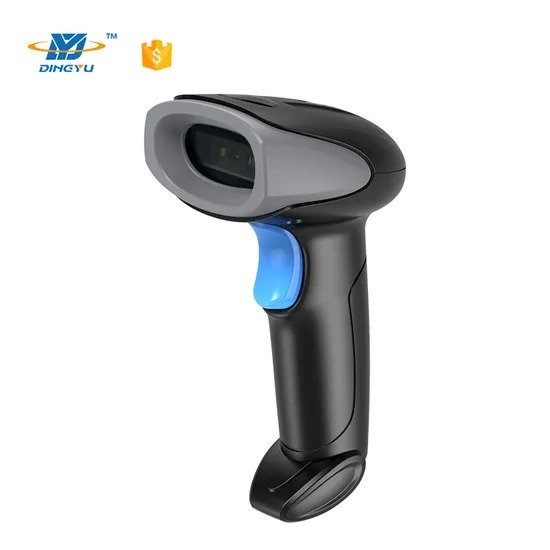

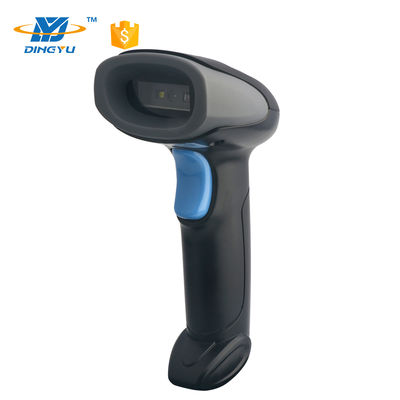

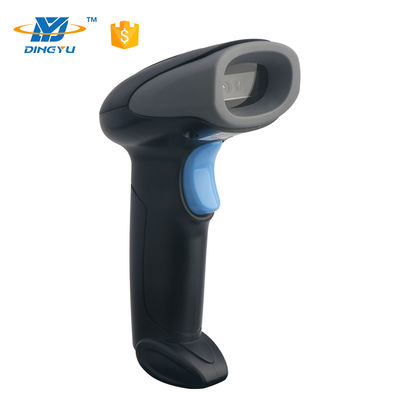

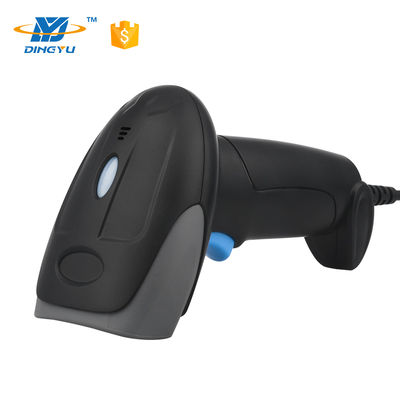

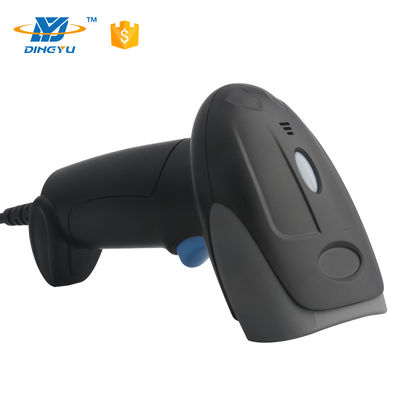

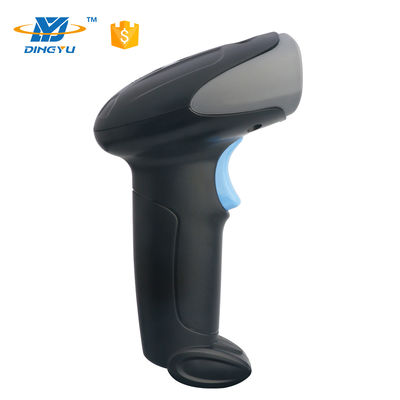

Product Images

Frequently Asked Questions

Q1: How do you ensure high quality barcode scanners?

DYscan is a professional manufacturer with 18 years of experience in barcode scanner development. Our products undergo rigorous testing including engine age tests, wire bend tests, and switch life tests. All scanners are CE, FCC, and ROHS certified.

Q2: What is your quality control process?

We conduct 1 million wire bend tests and button press tests. Every device is thoroughly tested before shipment.

Q3: What is the warranty period?

12 months warranty from date of purchase.

Q4: Do I need to install drivers?

No drivers required - our scanners support plug-and-play operation with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
