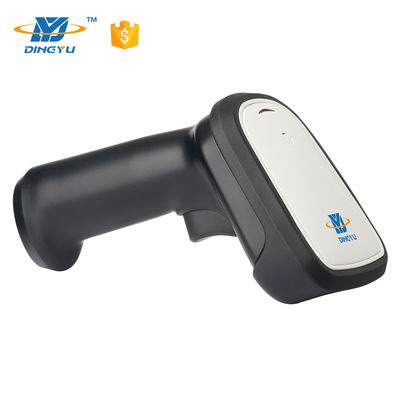

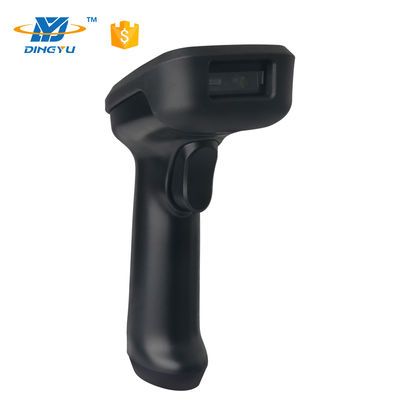

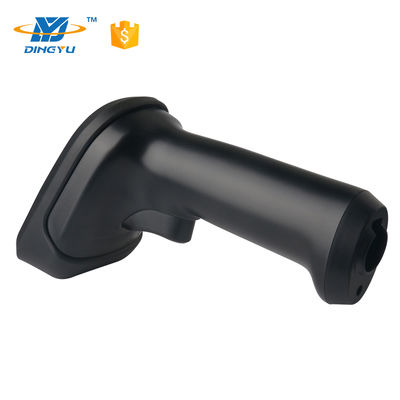

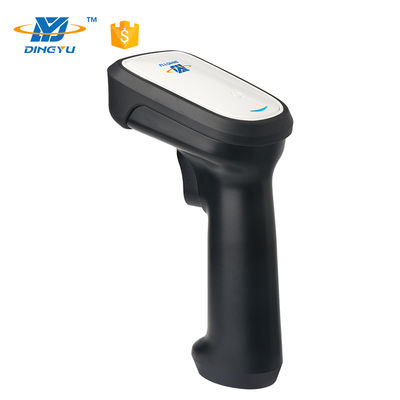

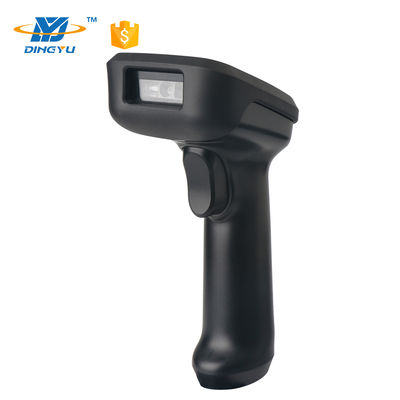

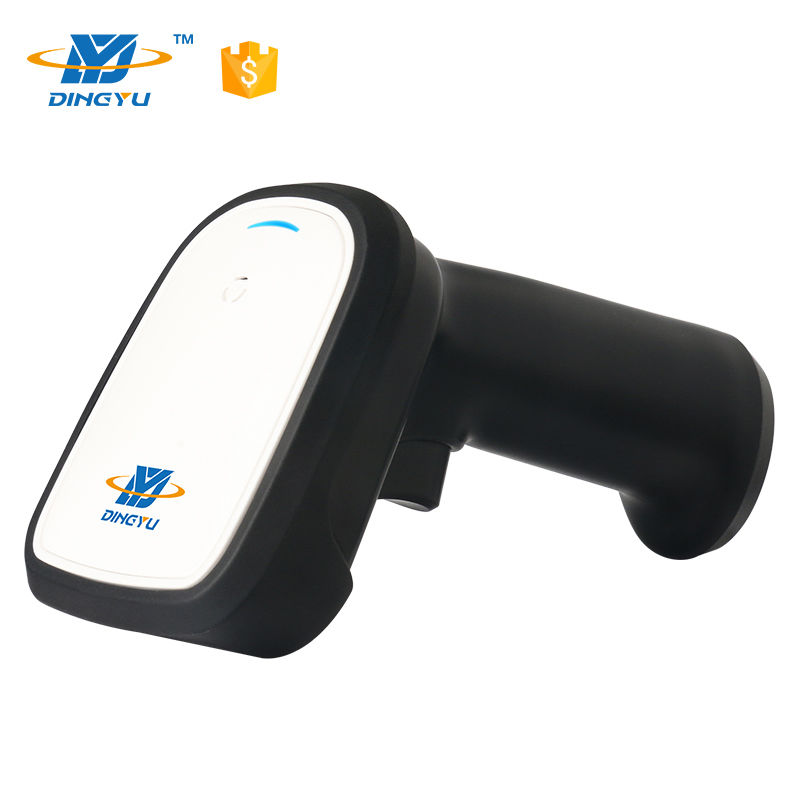

1D Handheld Wired Barcode Scanner CCD Bar Code Reader with USB Cable
The DS5220-1D is a high-performance 1D barcode scanner featuring advanced CCD image recognition technology. Designed for versatility, it efficiently reads barcodes from paper, goods, screens, and other media surfaces. Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory applications.
Key Features
- Ergonomic design for comfortable extended use
- Reads all mainstream 1D barcodes with ease
- High-performance processor enables fast decoding (3mil resolution)
- Supports multiple languages and operating systems
- USB interface for universal connectivity
- Wide application in supermarkets, warehouses, mobile payments, and chain stores
Technical Specifications
Performance
| Scan Type |
Linear CCD |
| Light Source |
Visible red light, 625±10nm |
| CPU |
32-bit |
| Resolution |
2500 |
| Reading precision |
≥3mil/0.076mm(PCS90%,Code 39) |
| Decoding speed |
300times/s |
| Depth of field |
20mm~680mm |
| Scan Mode |
Manual, Continuous, Auto Sense, Flashing, control command |
| Prompt method |
LED indicator, buzzer |
| Scan angle |
Pitch:±60°, Roll: ±30°, Skew: ±60° |
| Print Contrast Signal |
≥20% |
| Ambient Light |
Dark environment, indoor natural light |
| Symbologies |
UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA), Codabar(NW-7), Plessey, MSI Plessey, RSS, China Post, etc. |
Physical Parameters
| Weight |
≈160.8g (without cable) |
| Dimension |
L68.4mm × W170.6mm × H87.6mm |
| Communication Mode |
USB, USB-COM |
| Interface Type |
USB, USB-COM |
| Power Supply |
DC 5V@80mA (work) |
Environmental Specifications
| Operating temperature |
-20ºC to 50ºC |
| Storage temperature |
-40ºC to 60ºC |
| Humidity |
5% to 95% (non-condensing) |
| Transport vibration Test |
10H@125RPM |
Accessories
- USB Cable for connecting to host devices
- RS232 Cable with USB supply cable for alternative connections
Product Gallery
Application
Frequently Asked Questions
How do you ensure high quality barcode scanners?
DYscan is a professional manufacturer and developer of barcode scanners with 18 years of field experience. Our quality control includes professional testing machines (engine age test, wire bend machine, switch life test, shock resistance test). All our barcode scanners pass CE, FCC, and ROSH certifications.
How do you perform quality control?
We conduct wire bend tests for 1 million cycles, button tests for 1 million presses, and all devices are thoroughly tested before shipment.
What is the warranty period?
12 months warranty.
How do you ensure stable performance?
We use flow line production throughout the manufacturing process. Each product undergoes at least 4 tests before delivery.
Do you offer OEM/ODM services?
We provide OEM services including custom logos, color boxes, and user manuals. Our technical team supports ODM services for specialized requirements.
What are your company strengths?
As a professional scanner manufacturer, we have dedicated departments for R&D, production, testing, marketing, sales, and customer service, each led by experienced directors.
Do I need to install drivers?
No. Our scanners support plug-and-play functionality and are compatible with Windows, Mac OS, iOS, Linux, UNIX, and Android systems without requiring driver installation.
