DYscan 1D Barcode Scanner USB 300 Scans/sec Handheld CMOS Reader

DYscan 1D Barcode Scanner USB 300 Scans/sec Handheld CMOS Reader

  • DYscan 1D Barcode Scanner USB 300 Scans/sec Handheld CMOS Reader
  • DYscan 1D Barcode Scanner USB 300 Scans/sec Handheld CMOS Reader
  • DYscan 1D Barcode Scanner USB 300 Scans/sec Handheld CMOS Reader
  • DYscan 1D Barcode Scanner USB 300 Scans/sec Handheld CMOS Reader
  • DYscan 1D Barcode Scanner USB 300 Scans/sec Handheld CMOS Reader
  • DYscan 1D Barcode Scanner USB 300 Scans/sec Handheld CMOS Reader
DYscan 1D Barcode Scanner USB 300 Scans/sec Handheld CMOS Reader
Produktdetails:
Zahlung und Versand AGB:
Min Bestellmenge: 1
Kontakt
Ausführliche Produkt-Beschreibung
Schnittstellentyp: USB Scangeschwindigkeit: 300 Scans/sek
Scanelement: CMOs Abmessungen: L150mm * B70mm * H95mm
Gewicht: ≈110g (ohne Kabel) Kabellänge: 1,8 m
Kommunikationsmodus: USB, RS232 Stromversorgung: DC 5V@120 mA (Arbeit), 36 mA (Standby)
Lichtquelle: Sichtbares rotes Licht, 625 ± 10 nm CPU: 32-Bit
Auflösung: 2500 Lesepräzision: ≥3 Mio./0,076 mm (PCS90%, Code 39)
Feldtiefe: 45 mm ~ 350 mm Betriebstemperatur: -20ºC bis 50ºC
Lagertemperatur: -40ºC bis 60ºC
Hervorheben:

1D barcode scanner USB handheld

,

CMOS barcode scanner 300 scans/sec

,

DYscan 1D barcode reader with warranty

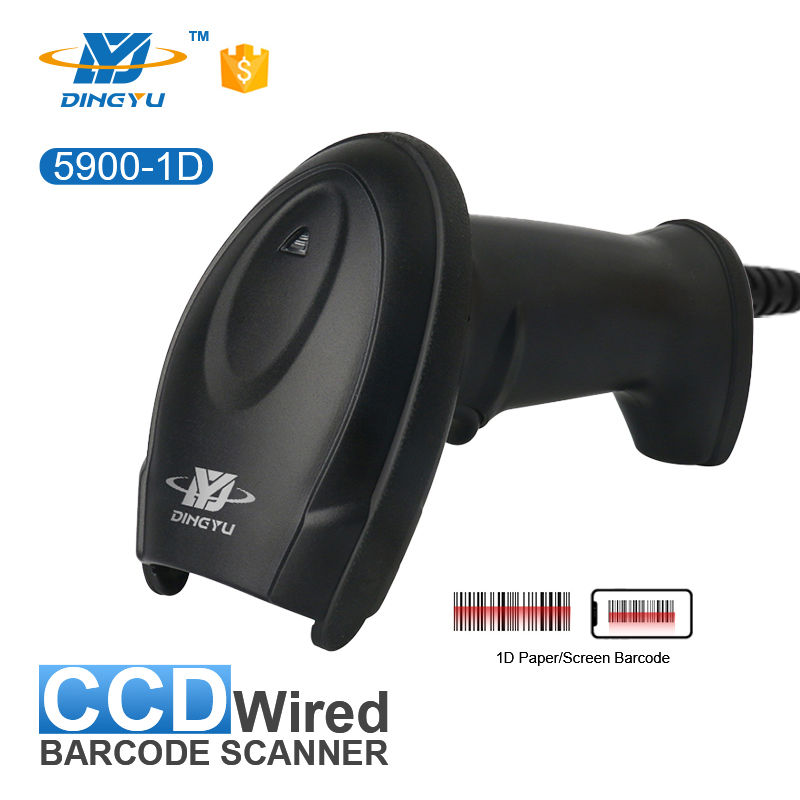

DS5900-1D High-Performance 1D Barcode Scanner
The DS5900-1D is a professional-grade 1D barcode scanner featuring advanced CCD image recognition technology. Designed for reliability and efficiency, it effortlessly reads barcodes from various surfaces including paper, products, and digital screens. Ideal for manufacturing, warehousing, logistics, healthcare, retail, and inventory management applications.
Key Features
  • Ergonomic design for comfortable extended use
  • Compatible with all mainstream 1D barcode formats
  • High-speed decoding with 32-bit processor (3mil resolution)
  • Multi-language and system support
  • USB interface for universal connectivity
  • Versatile applications in supermarkets, warehouses, and mobile payment systems
Technical Specifications
Performance
Scan Type Linear CCD
Light Source Visible red light, 625±10nm
CPU 32-bit
Resolution 2500
Reading Precision ≥3mil/0.076mm (PCS90%, CODE 39)
Decoding Speed 300 times/second
Depth of Field 45mm~350mm
Scan Modes Manual, Continuous, Flashing, Auto Sense, Command Control

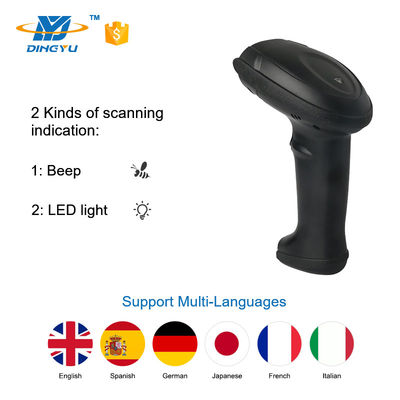

Prompt Method Buzzer, LED
Scan Angle Pitch: ±60° | Roll: ±30° | Skew: ±60°
Supported Symbologies UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5, and 20+ other formats
Physical Parameters
Weight ≈110g (without cable)
Dimensions 150mm × 70mm × 95mm
Cable Length 1.8M
Communication Modes USB, RS232
Power Supply DC 5V@120mA (Work), 36mA (Standby)
Environmental Specifications
Operating Temperature -20ºC to 50ºC
Storage Temperature -40ºC to 60ºC
Humidity 5% to 95% (non-condensing)
Included Accessories
  • USB Cable for device connection
  • RS232 Cable with USB power supply
Product Images
DYscan 1D Barcode Scanner USB 300 Scans/sec Handheld CMOS Reader 0
DYscan 1D Barcode Scanner USB 300 Scans/sec Handheld CMOS Reader 1
DYscan 1D Barcode Scanner USB 300 Scans/sec Handheld CMOS Reader 2
DYscan 1D Barcode Scanner USB 300 Scans/sec Handheld CMOS Reader 3
DYscan 1D Barcode Scanner USB 300 Scans/sec Handheld CMOS Reader 4
DYscan 1D Barcode Scanner USB 300 Scans/sec Handheld CMOS Reader 5
DYscan 1D Barcode Scanner USB 300 Scans/sec Handheld CMOS Reader 6
DYscan 1D Barcode Scanner USB 300 Scans/sec Handheld CMOS Reader 7
Frequently Asked Questions
How do you ensure the quality of your barcode scanners?
As a professional manufacturer with 18 years of experience, we maintain strict quality control with dedicated testing equipment including engine age tests, wire bend machines, and switch life tests. All products are CE, FCC, and ROHS certified.
What is your quality control process?
We conduct rigorous testing including 1 million wire bend tests and button durability tests. Every device undergoes multiple inspections before shipment.
What is the warranty period?
We provide a 12-month warranty for all our barcode scanners.
Do I need to install drivers?

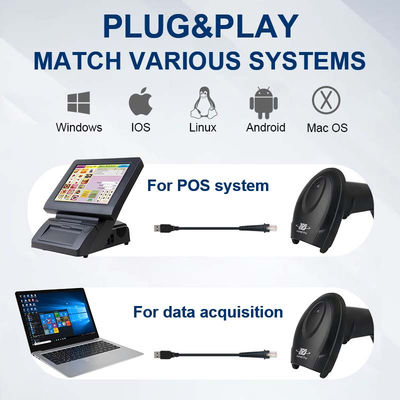

No drivers are required. Our scanners support plug-and-play functionality across Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
