Name: Wireless 2.4G Handheld Barcode Scanner with 30-600mm Depth of Field and 65cm/S Decoding Speed for POS Terminal
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 15 USD
Availability: InStock

Startseite Produkte 2D Barcode-scanner

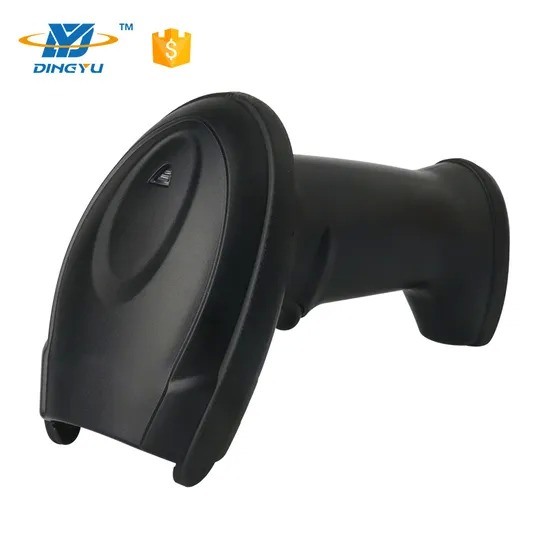

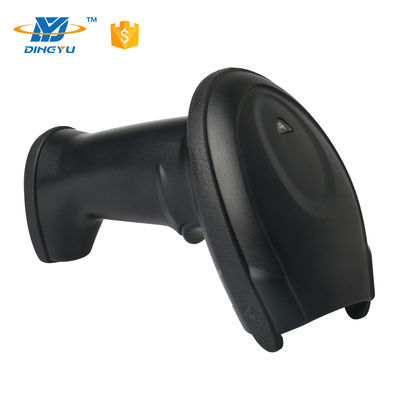

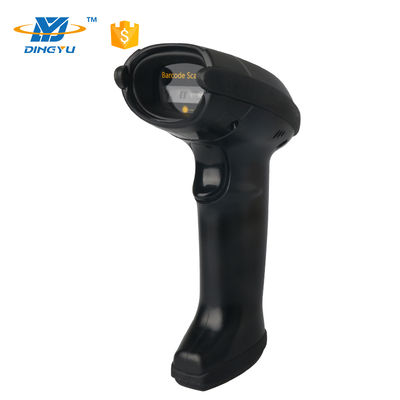

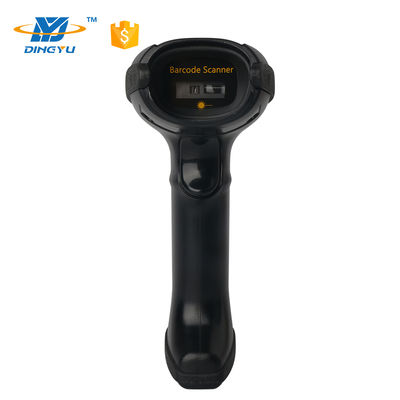

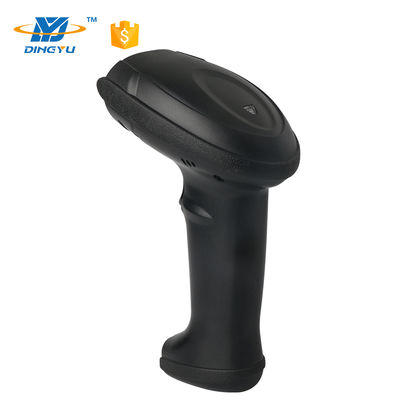

Wireless 2.4G Handheld Barcode Scanner with 30-600mm Depth of Field and 65cm/S Decoding Speed for POS Terminal

Produktdetails:

Zahlung und Versand AGB:

Min Bestellmenge:	1
Preis:	15

Kontakt

Ausführliche Produkt-Beschreibung

Modell Nr.:	DS5900-2D	Schnittstellentyp:	USB
Scanelement:	CMOs	Kameraauflösung:	640*480
Barcode -Auflösung:	3mil Code39	Feldtiefe:	30-600 mm
Decodierungsgeschwindigkeit:	65cm/s	Gewicht:	160g
Tropfenhöhe:	1,5 m	Betriebstemperatur:	-20 bis 55 Grad
Lagertemperatur:	-40 bis 60 Grad	Abmessungen:	L165,5 mm * W63.5mm * H92.3mm
CPU:	32 Bit	Druckkontrast:	15%
Kabellänge:	1,5 m
Hervorheben:	Wireless 2.4G Handheld Barcode Scanner , 30-600mm Depth of Field POS Terminal Scanner , 65cm/S Decoding Speed 2D Barcode Scanner

Handheld 2D Wireless 2.4G Barcode Scanner Bluetooth Barcode Scanner POS Terminal Scanner

1D 2D QR code Wired Scanner Handheld POS Terminal Barcode Scanner

The DS5900-2D is a durable wired 2D handheld barcode scanner with excellent fall resistance. It efficiently reads barcodes from various media including paper, goods, and screens. Ideal for multiple industries including manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory.

Product Specifications

Parameter	Details
Scan Type	CMOS
Light Source	Red Light LED 525±10nm(aim), 5600K LED (Lighting) Note: Global exposure camera with automatic lighting brightness adjustment based on reading distance.
CPU	32-bit
Resolution	640*480 ≥3mil/0.1mm(PCS90%,CODE 39)
Decoding speed	65CM/S
Depth of field	30-600mm
Scan view	41° * 31°
Scan mode	Manual, Continuous, Auto Sense
Scan angle	Roll:±360°, Pitch:±60°or greater, Yaw:±55°or greater
Print Contrast Signal	≥15%
Ambient Light	Dark environment, indoor natural light
Symbologies	1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5(Straight 2 of 5), Standard 2 of 5(IATA 2 of 5), Codabar(NW-7), MSI, GS1 Databar(Omnidirectional, Limited, Expanded), China Post, Tepepen, Febraban (Brazil bank code), GS1 Composite, Japan post, etc. 2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code, etc.
Weight	≈160g (without cable)
Dimensions	L165.5mm * W63.5mm * H92.3mm
Interface Type	USB
Cable length	1.8m
Power Supply	DC5V input, decoding current: 200mA
Operating temperature	-20ºC to 55ºC
Storage temperature	-40ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.5m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp. High Temp.: 60ºC Low Temp.: -20ºC
Transport vibration Test	10H@125RPM
