Name: Rugged Handheld 2D Barcode Scanner with 32-Bit CPU and 640*480 Resolution for High-Speed Scanning
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 40.00 USD
Availability: InStock

Startseite Produkte 2D Barcode-scanner

Rugged Handheld 2D Barcode Scanner with 32-Bit CPU and 640*480 Resolution for High-Speed Scanning

Produktdetails:

Zahlung und Versand AGB:

Min Bestellmenge:	1

Kontakt

Ausführliche Produkt-Beschreibung

Modell Nr.:	DS5900-2D	Schnittstellentyp:	USB
Scangeschwindigkeit:	300 Scans/sek	Scanelement:	CMOs
CPU:	32-Bit	Auflösung:	640*480
Auflösungsverhältnis:	3mil/0,076 mm	Decodierungsgeschwindigkeit:	65cm/s
Feldtiefe:	10 mm bis 550 mm	Scanmodus:	Manuell, automatisch, kontinuierlich
Druckkontrast:	25%	Gewicht:	160g
Dimension:	L175,5 mm * B72,5 mm * H102,5 mm	Stromversorgung:	DC 5V@180mA (Arbeit)
Betriebstemperatur:	-20ºC bis 55 ° C.
Hervorheben:	32-Bit CPU 2D Barcode Scanner , 640*480 Resolution Handheld Barcode Scanner , 3mil Reading Ability QR Code Scanner

DS5900-2D Rugged Handheld Barcode Reader

The DS5900-2D is a high-performance wireless 2D barcode scanner featuring advanced CMOS image recognition technology. Capable of reading barcodes from paper, goods, screens, and other media, this scanner is ideal for manufacturing, warehousing, logistics, healthcare, retail, mobile payments, and inventory management applications.

Key Features

Ergonomic design for comfortable extended use
Reads all mainstream 1D & 2D barcodes with ease
High-performance processor enables fast decoding (3mil resolution)
Supports multiple languages and operating systems
USB interface with 150m transmission range
Intelligent automatic reconnection when out of range
Widely compatible with various business environments

Technical Specifications

Performance

Scan Type	CMOS
Light Source	Red aim light, white fill light
CPU	32-bit
Resolution	640×480
Minimum Resolution	≥3mil/0.076mm (PCS90%, CODE 39)
Decoding Speed	65CM/S
Depth of Field	10mm~550mm (varies by barcode type)
Scan Modes	Manual, Auto Sense, Continuous
Indicators	LED, Buzzer
Scan Angle	Roll±360°, Pitch±60°, Skew±55°
Print Contrast Signal	≥25%
Ambient Light	Dark environment to indoor natural light

Supported Symbologies

1D Barcodes	Codabar, Code39, Code32, ITF25, Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, GS1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar (all variants), ISBT
2D Barcodes	PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec

Physical Parameters

Weight	≈160g (USB model)
Dimensions	175.5mm × 72.5mm × 102.5mm
Interface	USB
Power Supply	DC 5V@180mA (operating)
IP Rating	IP42
Supported Systems	Windows, Mac OS, iOS, Linux, Unix, Android

Environmental Specifications

Operating Temperature	-20ºC to 55ºC
Storage Temperature	-20ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.5m
Temperature Testing	30 minutes at 60ºC and -20ºC
Transport Vibration Test	10H@125RPM

Included Accessories

Cable	USB cable for device connection and charging
Receiver	For receiving and transmitting scanner data

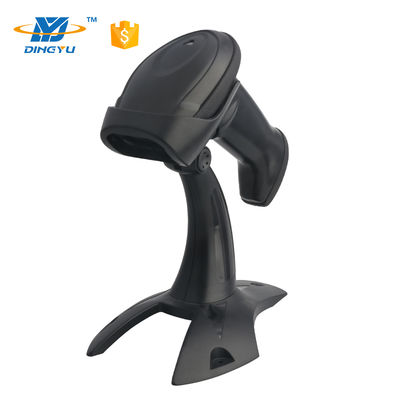

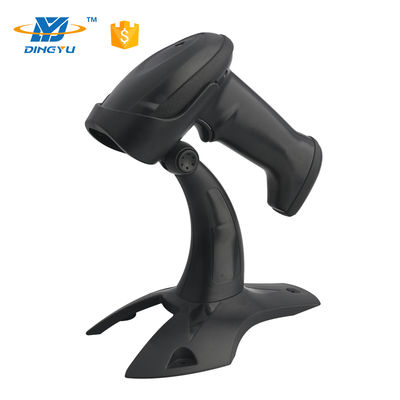

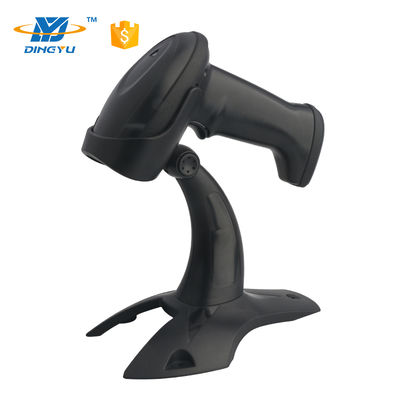

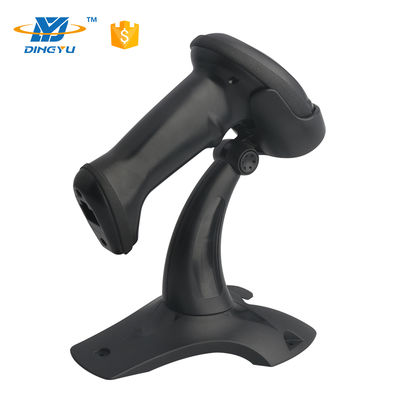

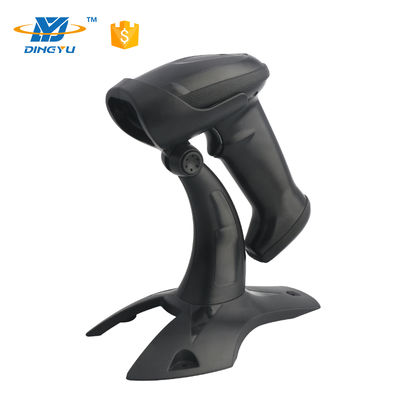

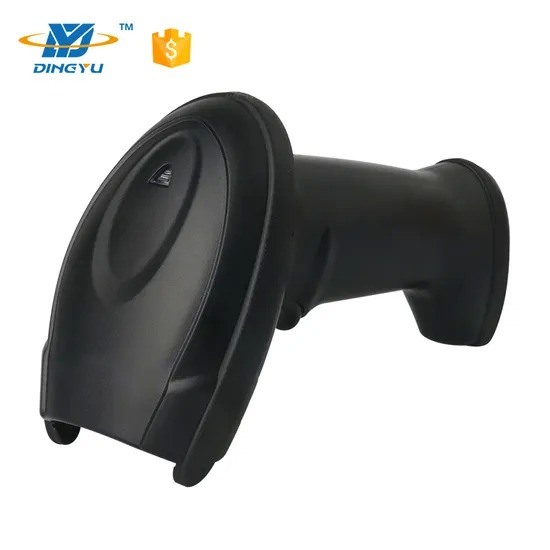

Product Images

Frequently Asked Questions

Q: How do you ensure the high quality of your barcode scanners?

A: With 18 years of professional manufacturing experience, we maintain strict quality control including engine age tests, wire bend tests, switch life tests, and shock resistance tests. All scanners are CE, FCC, and ROHS certified.

Q: What is your quality control process?

A: We conduct 1 million wire bend tests and button press tests. Every device undergoes thorough testing before shipment.

Q: What is the warranty period?

A: We provide a 12-month warranty for all our barcode scanners.

Q: How do you ensure stable performance?

A: Our assembly line production includes at least 4 quality checks before delivery.

Q: Do you offer OEM/ODM services?

A: Yes, we provide OEM services including custom branding and packaging. Our technical team supports ODM development.

Q: Do I need to install drivers?

A: No, our scanners support plug-and-play operation with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
