Name: OEM Embedded 2D Barcode Scan Engine with 1 Year Warranty 1.2m Drop Height and DC 3.3V Power Supply
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

Startseite Produkte Barcodescan-Maschine

OEM Embedded 2D Barcode Scan Engine with 1 Year Warranty 1.2m Drop Height and DC 3.3V Power Supply

Produktdetails:

Zahlung und Versand AGB:

Min Bestellmenge:	1
Preis:	10

Kontakt

Ausführliche Produkt-Beschreibung

Modell Nr.:	DE2120	Schnittstellentyp:	USB
Scangeschwindigkeit:	25cm/s	Scanelement:	CMOs
Bildsensor:	640*480	Lesepräzision:	4 Millimeter/0,1 mm
CPU:	32-Bit	FFC-Kabel:	5cm
Tropfenhöhe:	1,2 m	Abmessungen:	21,2 mm * 16,0 mm * 12,0 mm
Lichtquelle:	Rotlicht-LED 625 ± 10 nm	Stromversorgung:	Gleichstrom 3,3 V bei 160 mA
Betriebstemperatur:	-20ºC bis 50ºC	Lagertemperatur:	-40 bis 70°C
Luftfeuchtigkeit:	5 % bis 95 %
Hervorheben:	1 Year Warranty Barcode Scan Engine , 1.2m Drop Height 2D Barcode Scanner Module , DC 3.3V Power Supply QR Code Scanner Module

Wholesale OEM Embedded 2D Barcode Scanning Modules Integrated Into Mobile Devices

Product Description

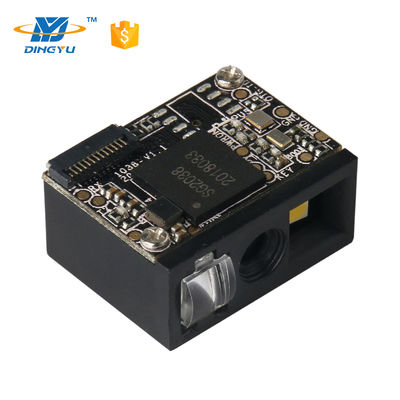

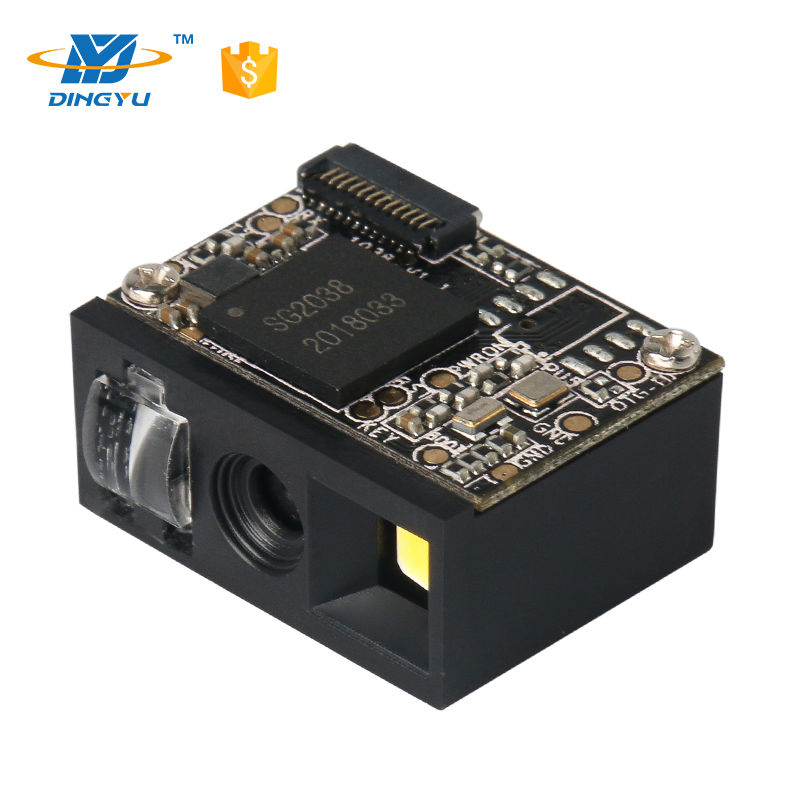

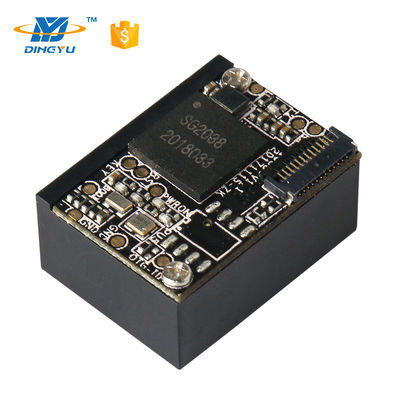

The DE2120 is a high-performance embedded barcode scanner module featuring advanced CMOS image recognition technology and intelligent image processing system. This compact module supports universal 1D and 2D barcode scanning with multiple interface options including USB and TTL.

Key Features

Versatile scanning capability for paper, goods, screens, and other media
Compact design for easy integration into OEM products including handheld devices and barcode collectors
Multiple scanning modes: Manual, Continuous, Auto Sense, and command control
Wide operating temperature range from -20ºC to 50ºC
Plug-and-play functionality with no driver installation required

Technical Specifications

Scan Type	CMOS
Light Source	Red Light LED 625±10nm (aim), 5600K LEDs (Lighting)
CPU	32-bit
Resolution	640*480
Reading precision	≥4mil/0.1mm (PCS90%, Code 39)
Decoding speed	25CM/S
Depth of field	25mm-400mm
Scan angle	Pitch: ±45° \| Roll: ±360° \| Skew: ±40°
Print Contrast Signal	≥25%
Weight	<4g
Dimensions	21.2mm × 16.0mm × 12.0mm (L×W×H)
Power Supply	DC 3.3V @160mA (Work)

Supported Symbologies

1D Barcodes	UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Strande 2 of 5, Codabar (NW-7), MSI Plessey, GS1 Databar (RSS), China Post, etc.
2D Barcodes	QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec, etc.

Environmental Specifications

Operating temperature	-20ºC to 50ºC
Storage temperature	-40ºC to 70ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.2m

Product Images

Frequently Asked Questions

Q1: How do you ensure high quality barcode scanners?

DYscan is a professional manufacturer with 18 years of experience in barcode scanner development. We maintain strict quality control with professional testing equipment including engine age tests, wire bend machines, switch life tests, and shock resistance tests. All our products pass CE, FCC, and ROHS certifications.

Q2: What is your quality control process?

We conduct rigorous testing including wire bend tests (1 million cycles), button durability tests (1 million presses), and comprehensive device testing before shipment.

Q3: What is the warranty period?

12 months warranty.

Q4: How do you ensure stable performance?

We implement flow line production with multiple quality checkpoints. Each product undergoes at least 4 tests before delivery.

Q5: Do you offer OEM/ODM services?

Yes, we provide OEM services including custom branding (logo, packaging, manuals) and ODM services supported by our technical team.

Q6: What are your company strengths?

As a professional scanner manufacturer, we have dedicated departments for R&D, production, marketing, and customer service, each led by experienced directors.

Q7: Do I need to install drivers?

No, our scanners support plug-and-play functionality across Windows, Mac OS, iOS, Linux, UNIX, and Android systems without driver installation.
