32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning

32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning

  • 32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning
  • 32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning
  • 32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning
  • 32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning
  • 32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning
  • 32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning
32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning
Produktdetails:
Zahlung und Versand AGB:
Min Bestellmenge: 1
Preis: 10
Kontakt
Ausführliche Produkt-Beschreibung
Modell Nr.: DE2290 Schnittstellentyp: USB
Scangeschwindigkeit: 35cm/s Scanelement: CMOs
Auflösungsverhältnis: 3mil/0,076 mm Auflösung: 300.000 Pixel, 640*480
Scanmodus: Manuell, kontinuierlich, automatische Erkennung, Befehlssteuerung Druckkontrast: 20 %
Stromversorgung: DC 3,3 V, 200 mA FFC-Kabel: 5cm
Tropfenhöhe: 1,2 m Gewicht: 3,5 g
Feldtiefe: 40–530 mm Abmessungen: 21,40 (L) 15,40 (B) 10,70 (H) mm
Bewegungstoleranz: 65cm/s
Hervorheben:

32-bit CPU Barcode Scan Engine

,

1 Mega Pixel Embedded Barcode Scanner

,

1 Year Warranty 2D Barcode Module

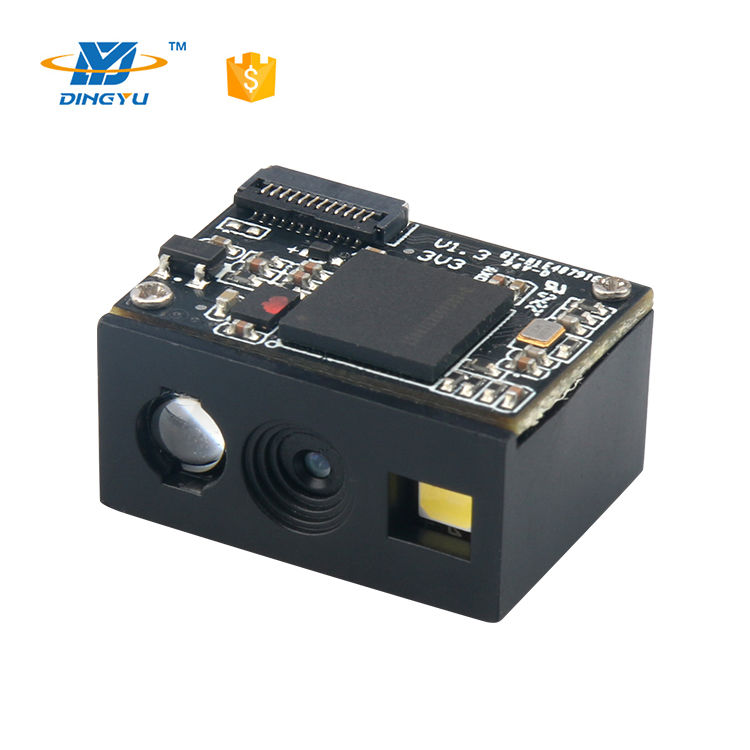

DE2290 Embedded 1D/2D Barcode Scanning Engine

The DE2290 is a high-performance 1 megapixel embedded 2D image module featuring advanced CMOS image recognition technology and an intelligent image recognition system.

32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning 0
Key Features
  • Excellent reading performance for barcodes on paper, merchandise, and screens

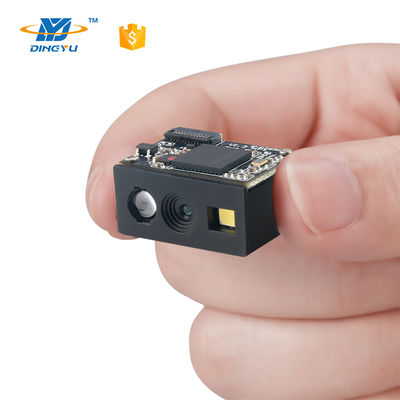

  • Compact design for easy integration into various equipment
  • Ideal for self-service machines, price checking systems, and lockers
  • Supports multiple operation modes including trigger and auto-sensing
  • Wide reading angle and motion tolerance
Technical Specifications
Parameter Specification
Weight 3.4g (without cable)
Dimensions 21.40±0.1mm (L) × 15.40mm±0.1mm (W) × 10.70±0.1mm (H)
Interface USB, USB-com (requires driver), TTL (USB 2.0 Full Speed)
Light Source White LED (auto-adjusting brightness), Red aiming LED (525nm)
CMOS 1280×800 resolution
CPU ARM 32-bit
Startup Time 750ms
Resolution ≥3mil/0.076mm (PCS90%, CODE 39)
Depth of Field 30-500mm
Scan Modes Trigger mode, Auto sense mode, Command control
Reading Angle: Roll: ±360°, Pitch: ±60°, Yaw: ±70°
Visual Angle: Horizontal 40° × Vertical 30°
Motion Tolerance: 65cm/s
Power Input: 3.3V~5V (DC5V recommended)
Standby Current: 47mA, Decoded average current: 180mA
Operating Temperature: -20ºC to 55ºC
Storage Temperature: -20ºC to 60ºC
Humidity: 5% to 95% (non-condensing)
Supported Symbologies
1D Codes: Codabar, Code39, Code128, UPC-A/E, EAN/JAN, GS1 Databar, MSI, and more
2D Codes: PDF417, QR Code, Data Matrix, Aztec, and Micro variants
32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning 1 32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning 2 32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning 3
Packaging & Shipping
32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning 4
Company Profile
32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning 5
Certifications
32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning 6
Exhibition
32-bit CPU 1 Mega Pixel Embedded Barcode Scanner with 1 Year Warranty for High-Performance 1D 2D Barcode Scanning 7
