High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU

High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU

  • High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU
  • High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU
  • High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU
  • High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU
  • High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU
  • High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU
High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU
Produktdetails:
Zahlung und Versand AGB:
Min Bestellmenge: 1
Preis: 10
Kontakt
Ausführliche Produkt-Beschreibung
Modell Nr.: DE2290 Schnittstellentyp: USB
Scangeschwindigkeit: 35cm/s Scanelement: CMOs
Auflösung: 3mil/0,076 mm Bildsensor: 640*480
Druckkontrast: 20 % Stromversorgung: Gleichstrom 3,3 V, 200 mA
FFC-Kabel: 5cm Tropfenhöhe: 1,2 m
Gewicht: 3,5 g Feldtiefe: 40–530 mm
Abmessungen: 21,40×15,40×10,70mm Lichtquelle: Weiße LED, rote LED
Betriebstemperatur: -20ºC bis 55 ° C.
Hervorheben:

1 Mega Pixel Barcode Scanner Module

,

640*480 Image Sensor 2D Barcode Scan Engine

,

32-bit CPU Embedded Barcode Scanner

High Quality USB Fixed Kiosk 2D Good Payment Barcode Scanner Module

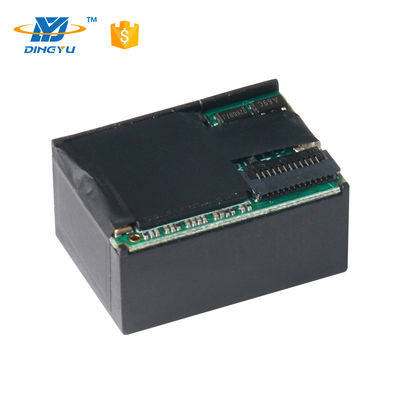

High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU 0

DE2290 is a high-performance 1 megapixel embedded 2D image module featuring advanced CMOS image recognition technology and intelligent image recognition system.

  • Excellent reading performance for barcodes on paper, merchandise, and digital screens
  • Compact integrated design for easy installation in various equipment
  • Ideal for self-service machines, price checking systems, and smart lockers
Product Specifications
Weight: 3.4g (without cable)
Dimensions: 21.40±0.1mm (L) × 15.40mm±0.1mm (W) × 10.70±0.1mm (H)
Interface: USB, USB-com (requires driver), TTL (USB 2.0 Full Speed protocol)
Light Source: White LED (auto-adjusting brightness) with red aiming LED (525nm wavelength)
CMOS: 1280×800 resolution
CPU: ARM 32-bit processor
Performance Parameter Specification
Startup Time 750ms
Resolution ≥3mil/0.076mm (PCS90%, CODE 39)
Depth of Field 30-500mm
Scan Modes Trigger mode, Auto sense mode, Command control
Reading Angles Roll: ±360°, Pitch: ±60°, Yaw: ±70°
Motion Tolerance 65cm/s
Power Input 3.3V~5V (DC5V recommended), Standby: 47mA, Decoding: 180mA average
Supported Symbologies
1D Codes: Codabar, Code39, Code32, ITF25, Industrial 25, Matrix 25, Code93, Code11, Code128, GS1-128, UPC-A/E, EAN/JAN, ISBN, ISSN, GS1 Databar variants, MSI, Febraban
2D Codes: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec
Environmental Specifications
Parameter Specification
Operating Temperature -20ºC to 55ºC
Storage Temperature -20ºC to 60ºC
Humidity 5% to 95% (non-condensing)
Vibration Test 10H@125RPM
Product Images

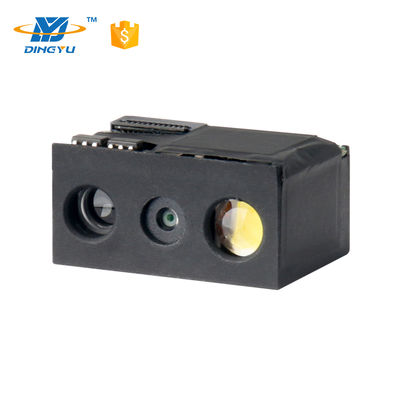

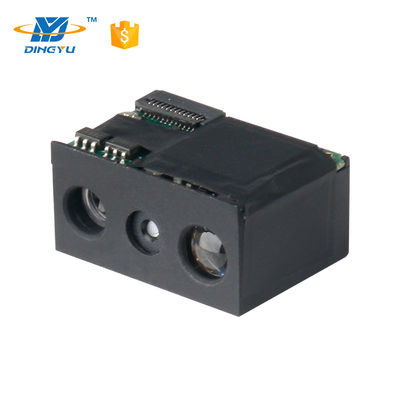

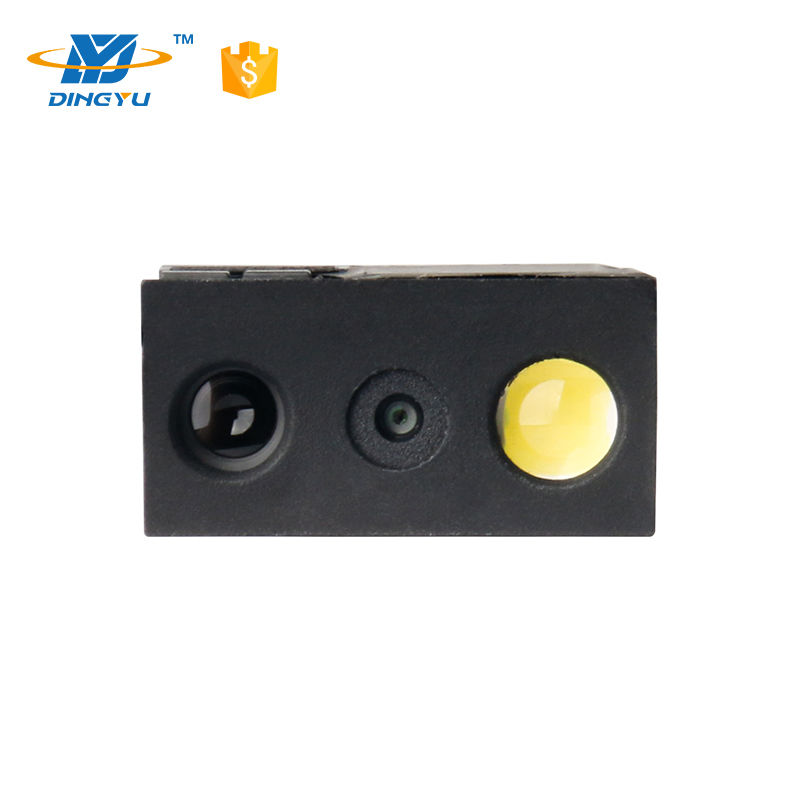

High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU 1 High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU 2 High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU 3
Packaging & Shipping

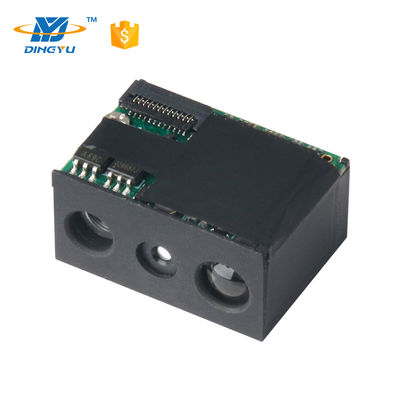

High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU 4
Company Profile
High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU 5
Certifications
High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU 6
Exhibition
High Performance 1 Mega Pixel 2D Barcode Scanner Module with 640*480 Image Sensor and 32-bit CPU 7
